Spectra Precision LL100N Laser Level


Self-Levelling Laser level for general groundworks and levelling.

Please note this kit has alkaline batteries NOT rechargeables

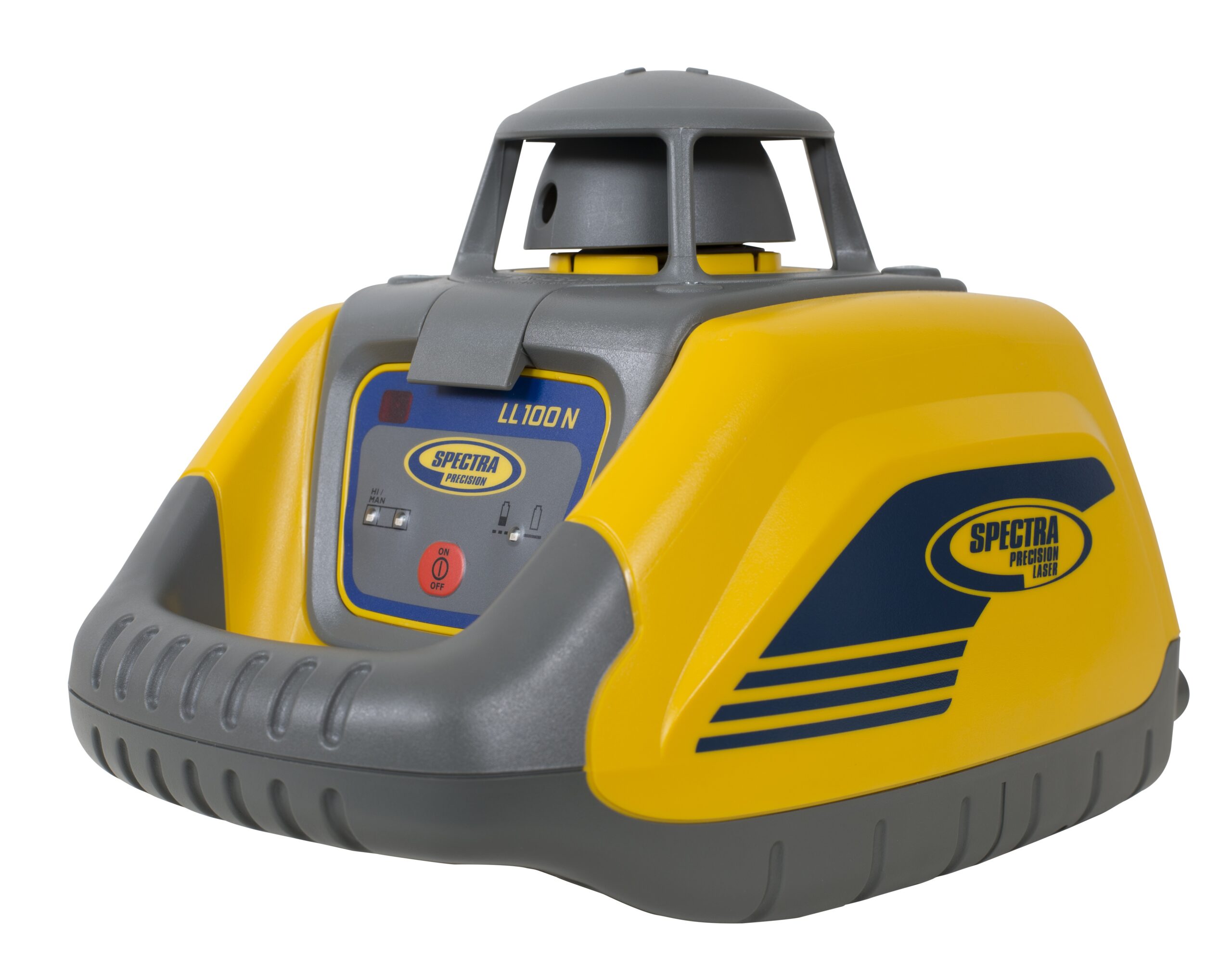

The Spectra Precision LL100N Laser Level is a complete one man leveling crew in a case. A complete system is contained in a single hard-shelled, portable carrying case – the laser, receiver, clamp, tripod, and grade rod – for easy transportation, storage, and use. A standard case with laser and receiver only is also available. Automatic, self-leveling ensures fast, accurate setups. Easy, one-button operation requires minimal training.

The LL100N Laser Level is capable of handling a wide variety of elevation control applications. Versatility is added with single-axis manual slope capability for setting out driveways, ramps, and residential drainage lines. It is rugged enough for the toughest jobsite and designed to survive a 3 foot (1 m) drop onto concrete. The LL100 Laser Level is backed by a 2-year instant over the counter exchange warranty.

The LL100N Laser level comes complete with The Spectra Precision® HR320 Laser Receiver and C59 Bracket. This is a durable laser receiver for exterior leveling applications. LCD’s on the front and back display a 5 segment grade arrow that indicates grade position. A loud beeper is designed to be heard on noisy job sites. Fine and medium accuracies are selectable to meet various applications and conditions.


Purchase options:

Spectra Precision LL100N

LL100N Laser Level
2 x D-Cell Batteries
HR320 Receiver
C59 Adapter for Receiver
Multi-language Operating Manual
Small Carrying Case


Spectra Precision LL100N with Tripod (ALT10) and Staff (4m)

LL100N Laser Level
2 x D-Cell Batteries
HR320 Receiver
C59 Adapter for Receiver
Multi-language Operating Manual
Small Carrying Case
Aluminium Tripod
4m Staff

Additional information


Spectra LL100N, Spectra LL100N with Tripod and Staff


LL100n Features:
Auto levels (self-levels) horizontally for all Groundworks
Automatic electronic self-leveling - turn it on and start working
Simple one-button operation for quick start up
Height of Instrument Alert - unit stops rotating when jarred to avoid erroneous readings
Job site durable and tough - withstands a 1m drop on concrete or a 1.5 m tip over without breakage.
Rugged design, reduces downtime.
Dual axis manual slope mode to match known references.
Slopes can be set up to 30 m away with the optional RC601 remote control
Energy-efficient design offers long battery life on 2 x D-cell alkaline batteries
Rotor cage protection can be removed for precise 360°coverage

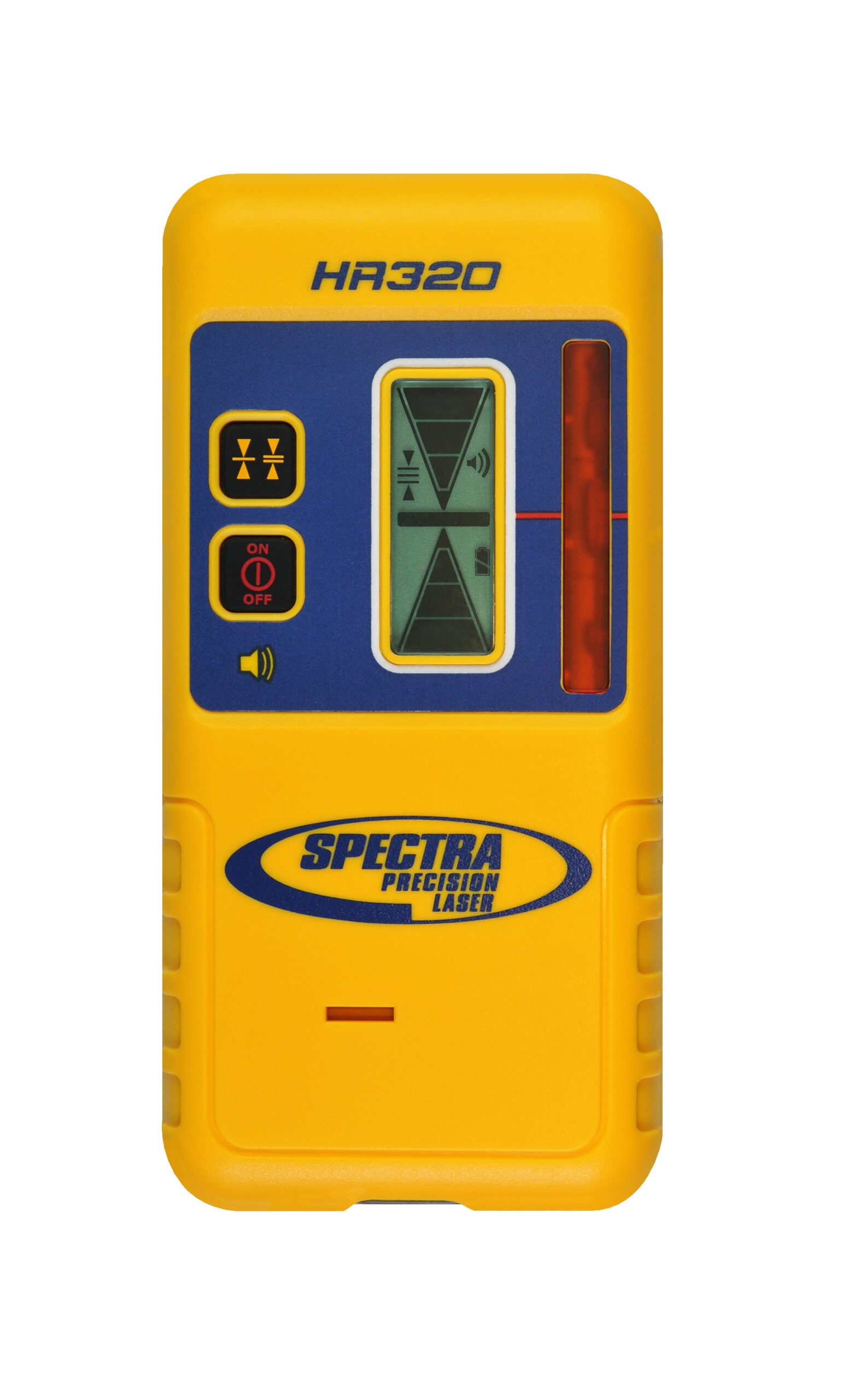

H320 Laser Receiver Features
Dual LCD’s on front and rear are ideal for general outdoor applications
Fine or standard accuracy fits all application needs.
Strong waterproof housing (IP67) protects the unit from dust, moisture and accidental drops
Loud 100 dBA speaker can be heard on the nosiest job site.
Two On-Grade Sensitivities: Fine 2 mm, Coarse 6 mm
LCD Channels: 5
Battery Life: 70 hrs continuous
Automatic Shutoff: 30 minutes
Dust & Waterproof: Yes to IP67
Weight: 0.33 kg
Warranty: 3 Years
